Guide Rails for Elevator

JUPITER is the Distributor for the SAVERA Group Guide Rails in INDIA. Savera Group is having manufacturing facilities for guide rails world wide.

They are market leader in the world for Guide rails. Jupiter is distributor and stockiest of the Machined Guide Rails from Savera group. All guide rails are made as per as per ISO 7465, with key & key-way (Tongue & Groove), back facing, spot facing.

Installation and Alignment of the guide rails is very easy and fast with Tongue and Groove. Savera Guide Rails are perfectly straight and with smooth surface finish give smooth ride to elevators car. All Guide Rails are supplied with rust protective coating on surface and painted. All Guide Rails are available with raw material test certificate. It is available with us Ex stock.

guide rails for elevator

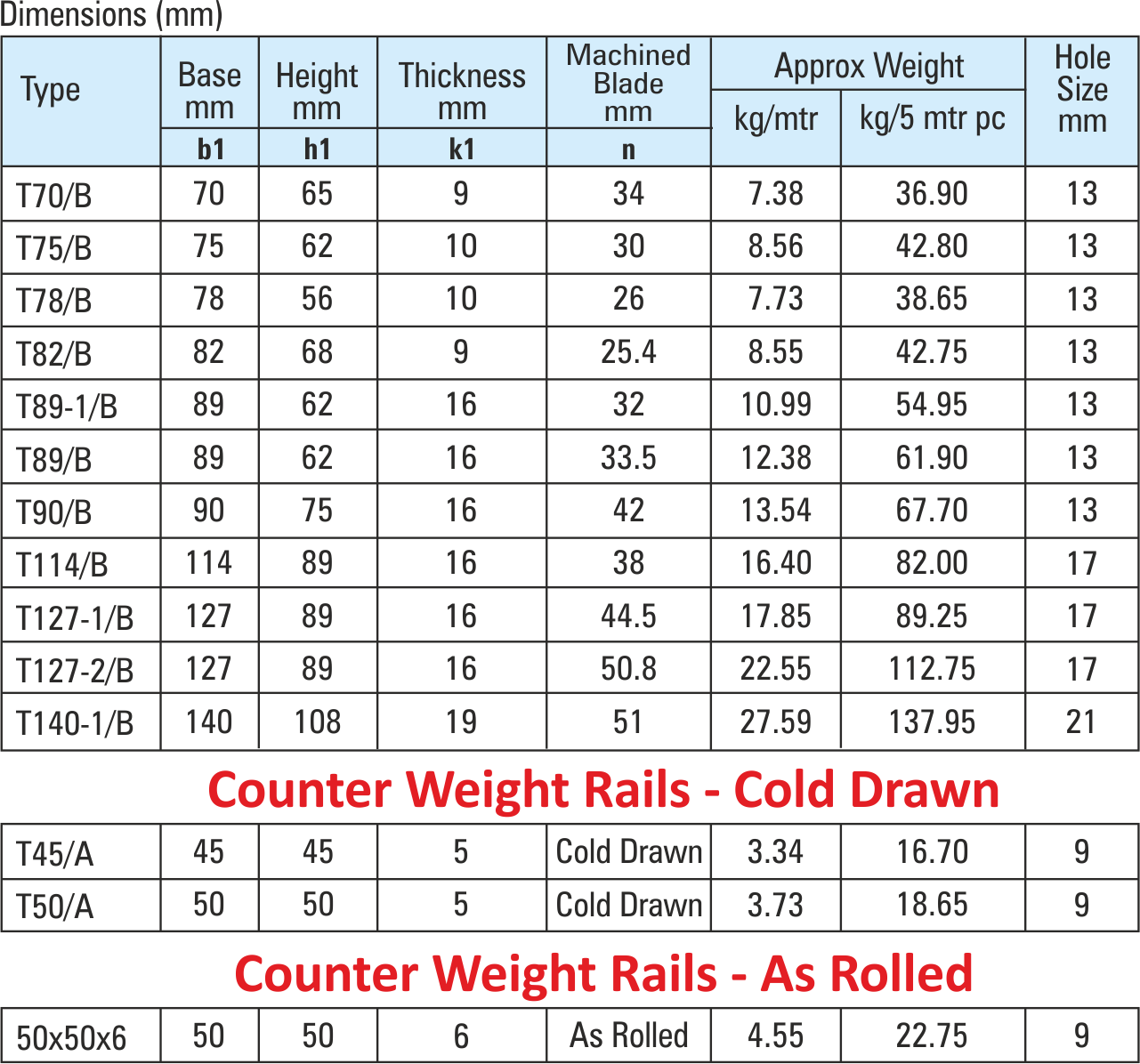

Dimension Chart for Guide Rail Elevators
Guide Rails for Elevator

Guide Rails

Guide Rails Type T90, T114. T140 can also be made available on demand. We can also supply accessories like clips, fish plate, brackets etc.

Guide Rail
  • Key-Keyway (Male-Female)
  • Spot facing/ back facing
  • Length 5 mtrs (16.4 feet)
  • Straight, accurate dimension
  • Excellent surface finish
  • High speed elevators
  • Earthquake prone zone
  • Autodoors elevators
  • Highrise building elevators
  • Smooth ride to elevator car
  • Dimensionally Accurate. Constant thickness throughout the 5 mtr. length
  • Excellent surface finish.
  • Perfect straightness of web and flange throughout the length
  • Fixed length 5 mtr. (16.4 feet) or 16 feet.
  • As per ISO 7465.
  • Raw Material will be conformed to IS2062 Gr. A. or Equivalent Standard.

Hollow Guide Rails

hollow guide rails
Hollow Guide Rails
Hollow Guide Rail
Hollow Guide Rails

MOST POPULAR SIZES (Hollow Rails)

MOST POPULAR SIZES (Hollow Rails)
